Entetsu Department Store

2011 / Hamamatsu, Shizuoka

Designed by Takashimaya Space Creates(Tokyo)

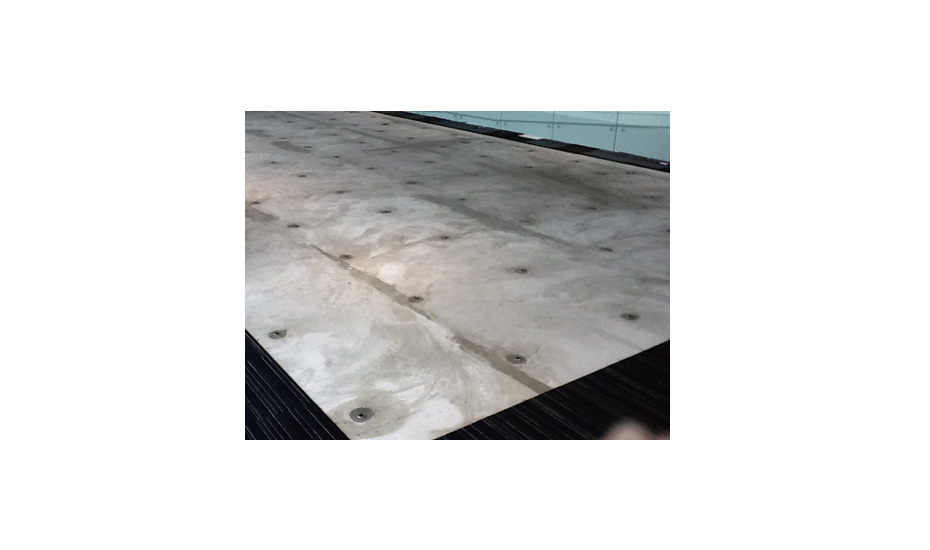

静岡県浜松市の遠鉄百貨店の催し物フロアにプロスパーポイントシステムが採用され、900mmピッチでポイントベースを床面に49個埋め込みました。

そのポイントベースに差し込む45角のアルミニウムポールの先端に取り付けられたポイントサポートにはテーパーがかかっていますので、催し物に応じて必要なポールの抜き差しが可能です。

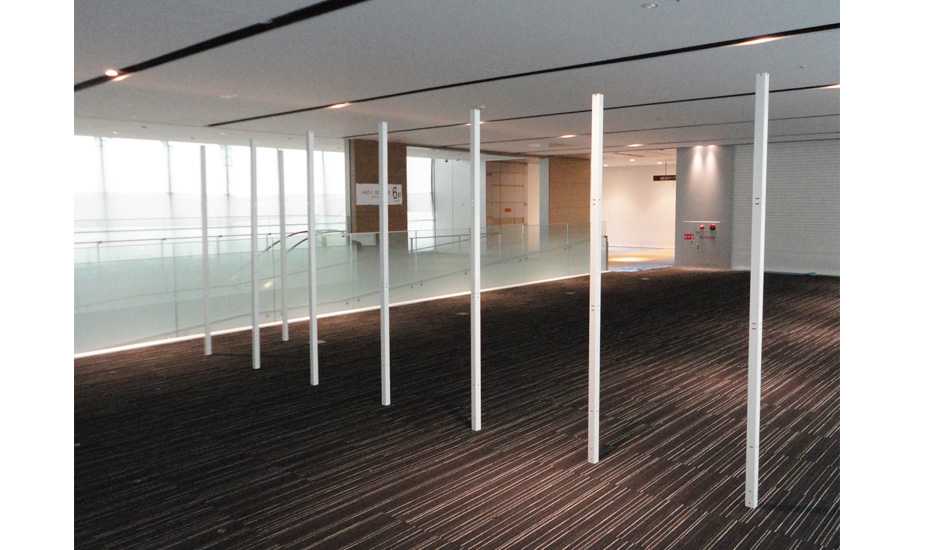

ポールの高さは2100mmで、ベースに差し込むだけで安定した状態で自立します。必要な箇所にW900×H1800mmの展示パネルをマグネットで取り付けるとより安定します。

ポイントベースはOAフロアにも取り付けることができますので、人員の増減により自由にレイアウトが変えられるオフィス用パーティションとしても使用可能です。自立したポールの高さが2100mmあるにもかかわらずブレが少ないのは画期的だという評価を頂きました。

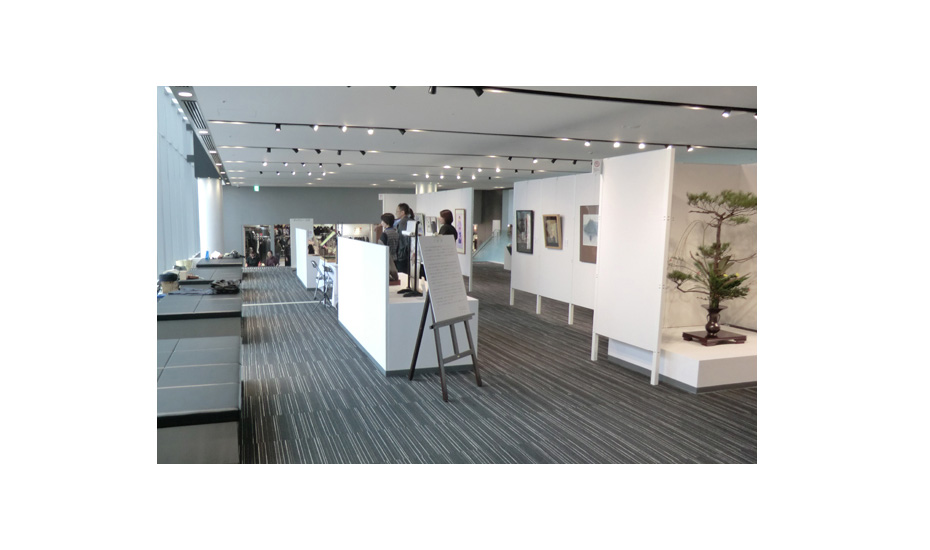

Prosper Point System is adopted at the entertainment floor in Entetsu department store in Hamamatsu, Shizuoka Prefecture.

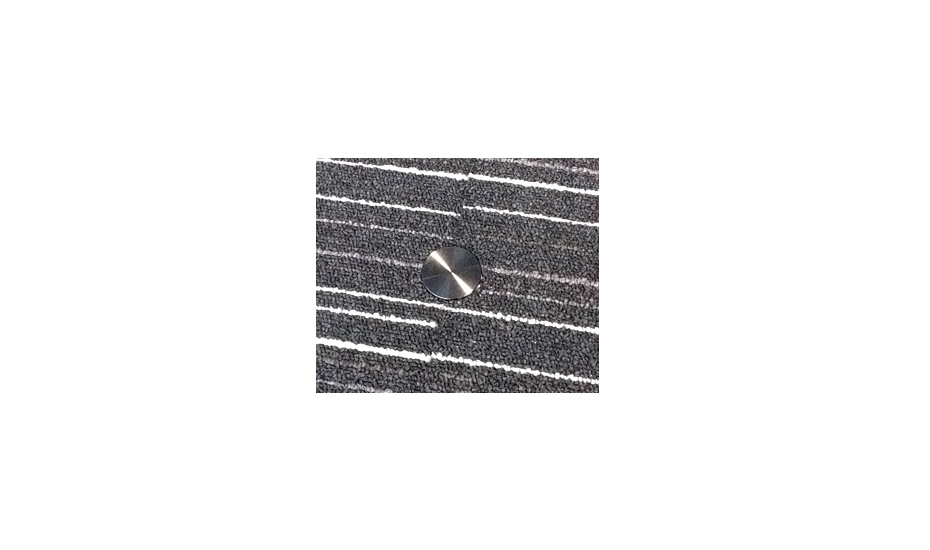

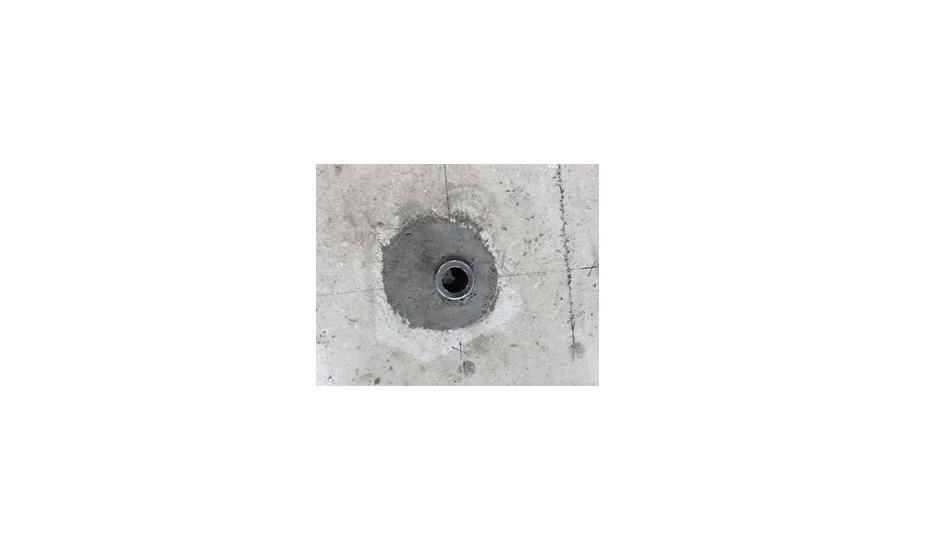

49 pc. of < the a href = "http://www.onebyone.ne.jp/products/details.php?pr_id=67"> Point Base were embedded at intervals of 900mm on the floor.

Point Support which is attached to the tip of the aluminum pole of the 45 corners that plugs into Point Base in it is taking taper, so you can connect or disconnect the pole necessary depending on the entertainment.

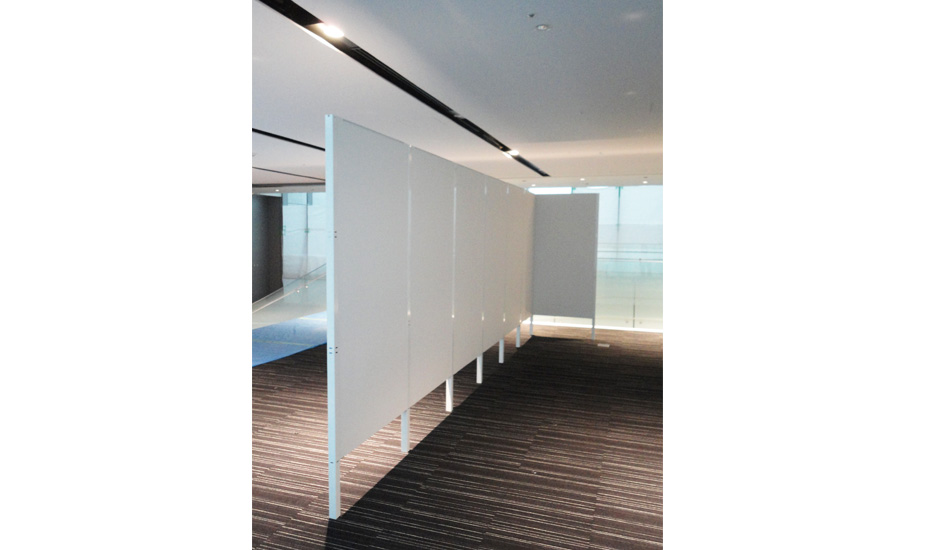

The height of the pole is 2100mm, and self-reliance in a stable state with only plug in Point Base. More you stable and mount the exhibition panel of W900 × H1800mm a magnet where required.

Point-based, so it can be installed in OA floor, can also be used as an office for the partition to be changed freely layout by the increase or decrease of the personnel. The height of the independent Paul has received a rating that is a breakthrough despite the blur is less certain 2100mm.
